Create a Report with ZK using iReport 5.1.0 and JasperReports

First let us setup the development environment. Download this document and follow the step by step instruction to install the necessary software’s.

Step 1:
Let us create new ZK Maven Project as shown in the following steps
In the Eclipse IDE, select File –> New-> Other->Maven Project

Click Next and Select zk-archetype-webapp 6.5.2 as shown below



Click Next and enter ireportExamples for Group ID, Artifact ID and package as shown. Select 6.5.2 version and click Finish



New Maven Project will be created with the following folder structure


Step 2:
Define a Person.java POJO class as defined below. This is the Java bean data source that is going to provide the data to the report.

package ireportExamples;

public class Person {

	private String firstName;
	private String lastName;
	private Integer age;

	public Person(String firstName, String lastName, Integer age) {
		this.firstName = firstName;
		this.lastName = lastName;
		this.age = age;
	}

	public String getFirstName() {
		return firstName;
	}

	public void setFirstName(String firstName) {
		this.firstName = firstName;
	}

	public String getLastName() {
		return lastName;
	}

	public void setLastName(String lastName) {
		this.lastName = lastName;
	}

	public Integer getAge() {
		return age;
	}

	public void setAge(Integer age) {
		this.age = age;
	}

}

We need the .class for the above java file. Just compile and run the project by right click on the project name and Select Run as –> Run on Server

Step 3:
Next we will start with iReport. Goto http://sourceforge.net/projects/ireport/files/?source=navbar and download iReport 5.1.0 windows installer exe as shown


After download, install the ireport and Run. After the welcome screen, Select File –> New as shown


Select Blank A4 and Click on Open this Template

Enter the Report Name and Location as shown above.

Now Let us add Report Title.On the Palette window, look for Label Static Text and select that and drag to title band in the designer.

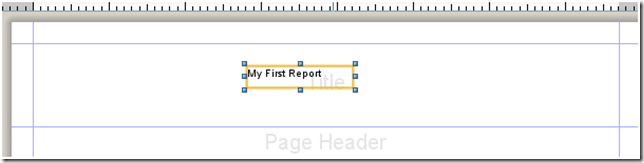

Now double click on the Static text and change the text as My First Report as shown

Now Let us change the font size. Click on Window -> Properties to change the font size as shown


Very Important Note, Select the myFirstReport in the left navigator and Right Click and Select Properties

Select Language option to “Java”

Add the column header for the report by dragging and dropping the "Static Text" for the column headers.



Next, we need to Tell iReport where to find the classes by defining the class path via Tools --> Option, and then select the "Classpath" tab.

Next let us define the Report query. Click Report query icon as shown

Goto JavaBean Datasource and type ireportExamples.Person in the class name and Click Read attributes button as shown


Select firstname, lastname and age as shown


Now Come to detail section and Drag a Text Field from the Palette

Right Click and Select Edit Expression

Remove the default expression and double click on firstname

Click Apply. Repeat the same steps for Lastname and age


Now save the report and Right click on myFirstReport on the Left navigation and select Complie report

And after successful compile, iReport will create jasper file in the path we specified earlier. The file name will be



Step 4:
Now let us come back to java application. First let us add the jasper report dependency in our POM File. Open the POM File and add the following

<dependency>
            <groupId>net.sf.jasperreports</groupId>
            <artifactId>jasperreports</artifactId>
            <version>5.1.0</version>
</dependency>

Next create a folder called reports under webapp folder as shown

Copy the myfirstreport.jasper file in the above folder as shown


Modify the index.zul file as follows

<zk>
	<window apply="org.zkoss.bind.BindComposer"
		viewModel="@id('vm')@init('ireportExamples.MyViewModel')">
		<button label="Show Report" onClick="@command('showReport')" />
	</window>
</zk>

Modify the MyViewModel.java as follows

package ireportExamples;

import java.util.ArrayList;
import java.util.List;

import net.sf.jasperreports.engine.JREmptyDataSource;
import net.sf.jasperreports.engine.JRException;
import net.sf.jasperreports.engine.JasperFillManager;
import net.sf.jasperreports.engine.JasperPrint;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;
import net.sf.jasperreports.view.JasperViewer;

import org.zkoss.bind.annotation.Command;
import org.zkoss.bind.annotation.Init;
import org.zkoss.zk.ui.Executions;

public class MyViewModel {

	private List<Person> personDataSet = new ArrayList<Person>();

	@Init
	public void init() {
		fillpersonData();
	}

	@Command
	public void showReport() throws JRException {
		String reportFile = Executions.getCurrent().getDesktop().getWebApp()
				.getRealPath("/reports");
		reportFile = reportFile + "/myfirstreport.jasper";

		JasperPrint jasperPrint = JasperFillManager.fillReport(reportFile,
				null, new JRBeanCollectionDataSource(personDataSet));
		 //view the report using JasperViewer
        JasperViewer.viewReport(jasperPrint,false);

	}

	private void fillpersonData() {
		personDataSet.add(new Person("John", "Smith", 25));
		personDataSet.add(new Person("David", "Thomas", 15));
		personDataSet.add(new Person("Ronald", "Jose", 45));
		personDataSet.add(new Person("Larry", "Scott", 46));
		personDataSet.add(new Person("Dennis", "Jerry", 45));
		personDataSet.add(new Person("Peter", "Carl", 12));
		personDataSet.add(new Person("Adam", "Jorge", 17));
		personDataSet.add(new Person("Aaron", "Leon", 24));
		personDataSet.add(new Person("Billy", "Mario", 49));
		personDataSet.add(new Person("Todd", "Ray", 65));
		personDataSet.add(new Person("Jimmy", "Norman", 54));
	}

}

That’s all. Now you run and click on the ShowReport button to show the report as shown
